Serial number	Equipment name	Equipment model	Illustration marking
1	Automatic tracking and positioning jet fire extinguishing device	YKS50/55	①
2	Electric valve	VGQ-5	②
3	Manual gate valve	DN200	③
4	Manual gate valve	DN150	④
5	Manual butterfly valve	DN100	⑤
6	Manual butterfly valve	DN80	⑥
7	High-level water tank		⑦

Go Back

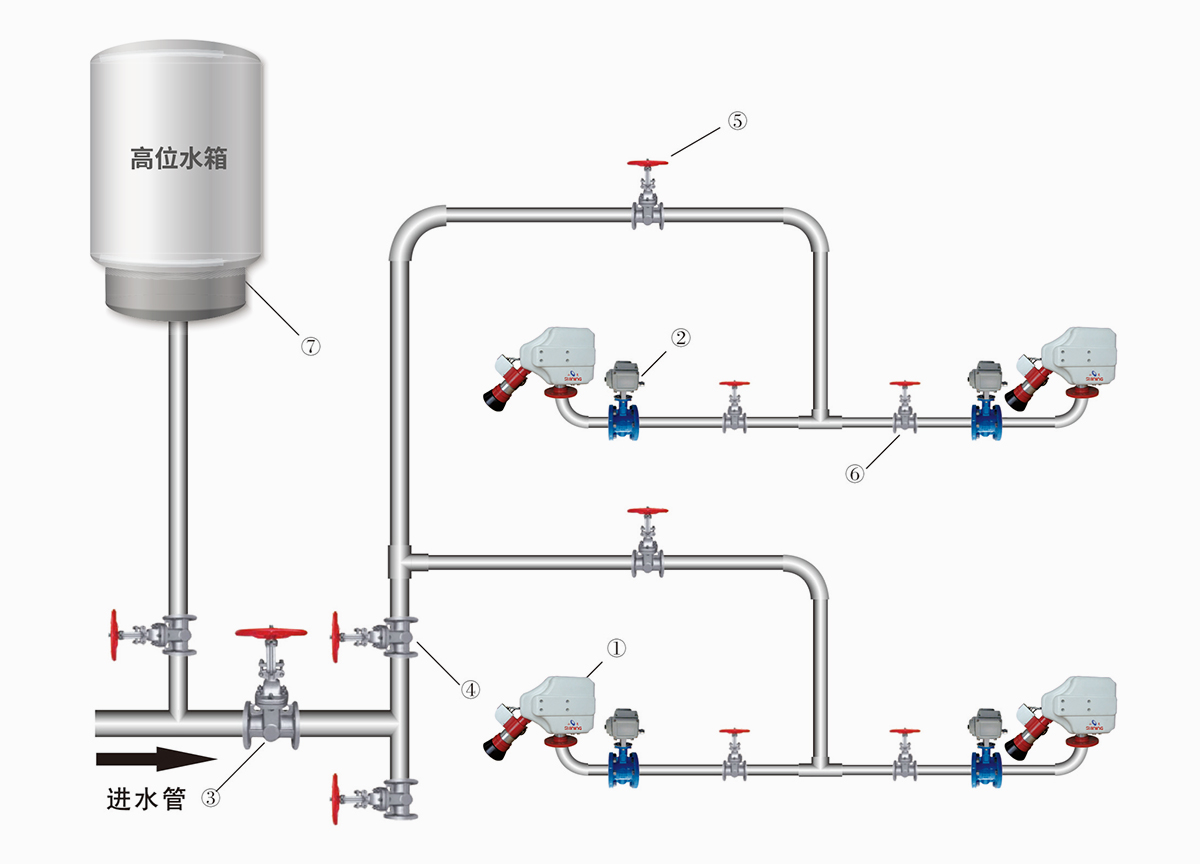

Schematic diagram of the pipeline network for the YKS50/55 automatic tracking and positioning jet fire extinguishing system
