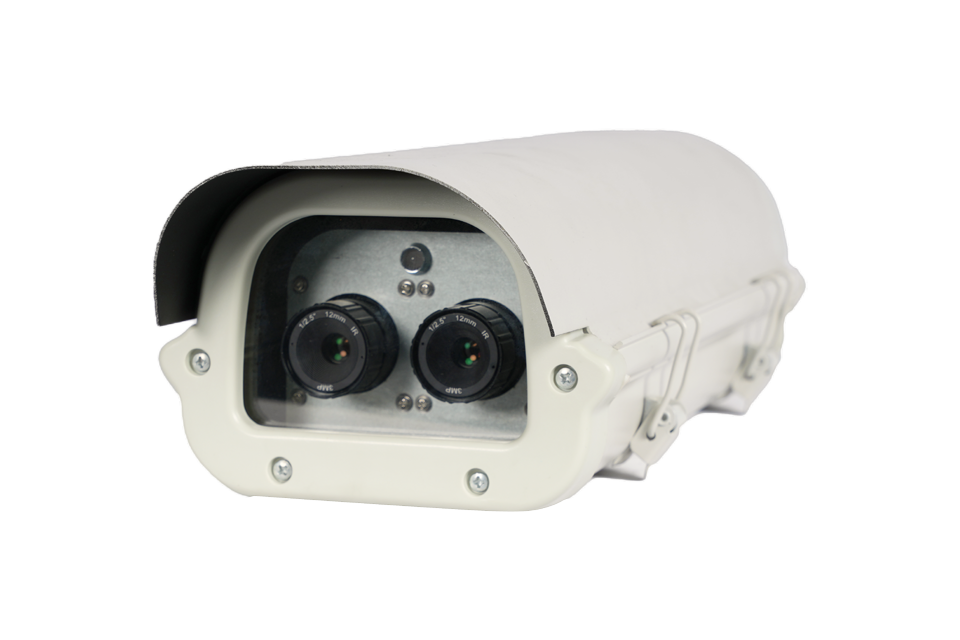

Image-type fire detector

Product Features

Fast response speed, alarm time less than 10 seconds;

Digital high-definition video output, with a resolution rate up to 1080P;

It adopts Ethernet transmission technology to support the TCP/IP protocol, allowing for remote viewing of on-site images from different locations.

Supports the ONVIF standard and is compatible with existing digital monitoring systems.

Notes:

It is not suitable for environments where there is a strong light source directly shining on the detector's detection window.

It is not suitable for installation in places where there is vibration or obvious shaking.

It is not suitable for places where acidic gases or other chemical fogs exist, causing the detection window of the detector to be blurred.

It is not applicable to environmental places where there is obstruction at the detection site.

Product Parameters

Product model VFD-YKS4186/6 VFD-YKS4186/12
Focal length 6mm 12mm
Perspective W42° ×H32° W22° ×H17°
Video format H.264(Resolution:1080P/960P/720P)
Power supply voltage DC24V(-15% ~ +10%)
Working environment Temperature:-35℃ ~+60℃ Relative humidity:≤ 95%RH(+25℃ )
Installation method Bracket installation
Protection grade IP66
Response time ≤ 20s
Size 385mm(L)×135mm(W)×100(H)mm
Material Main body: Aluminum alloy Window: Transparent glass Lock: Stainless steel
Weight 2.0kg
