Product Features

It is a waterway component matched with the ZDMS0.8/20S-YKS50ZDMSO.8/30S-YKS55 fire extinguishing device.

It adopts a motor, is equipped with an internal overheat protection circuit breaker and a manual operation device, featuring low power consumption and large shaft torque.

The limit switch is imported from Japan in its original form. The drive part adopts dual mechanical and contact limits to prevent overshoot and damage to components.

Product Parameters

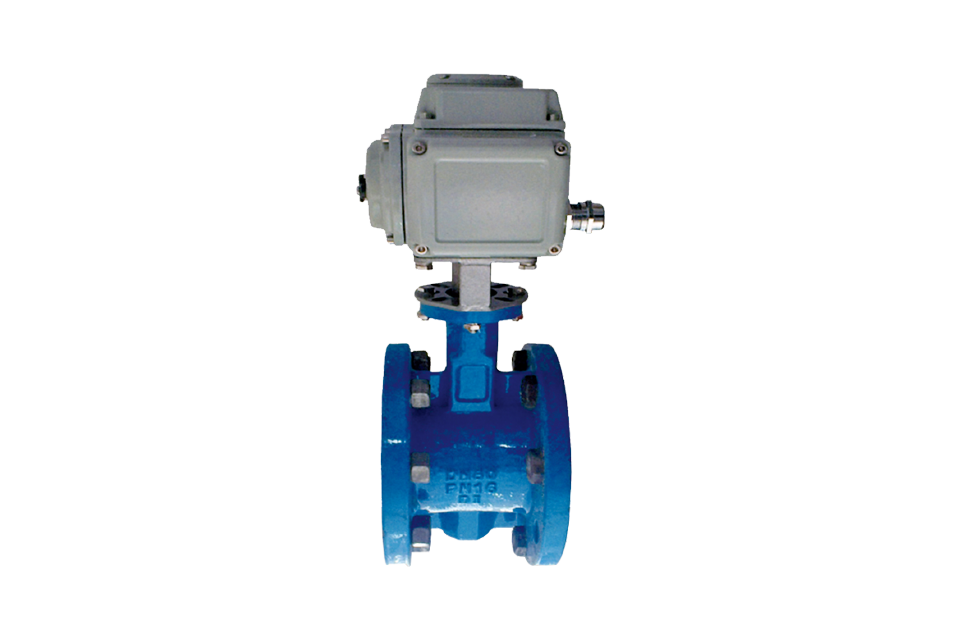

Product model	D971X-16Q(Electric butterfly valve)
Working voltage	DC24V
Starting current	0.6A
Power consumption	15W
Caliber	DN80
Connection method	Flange connection
Activate the pressure	≤ 0.04MPa
Nominal pressure	≥ 1.6MPa
Working power supply	DC24V
Itinerary	90°
Self-locking	Double worm gear mechanism
