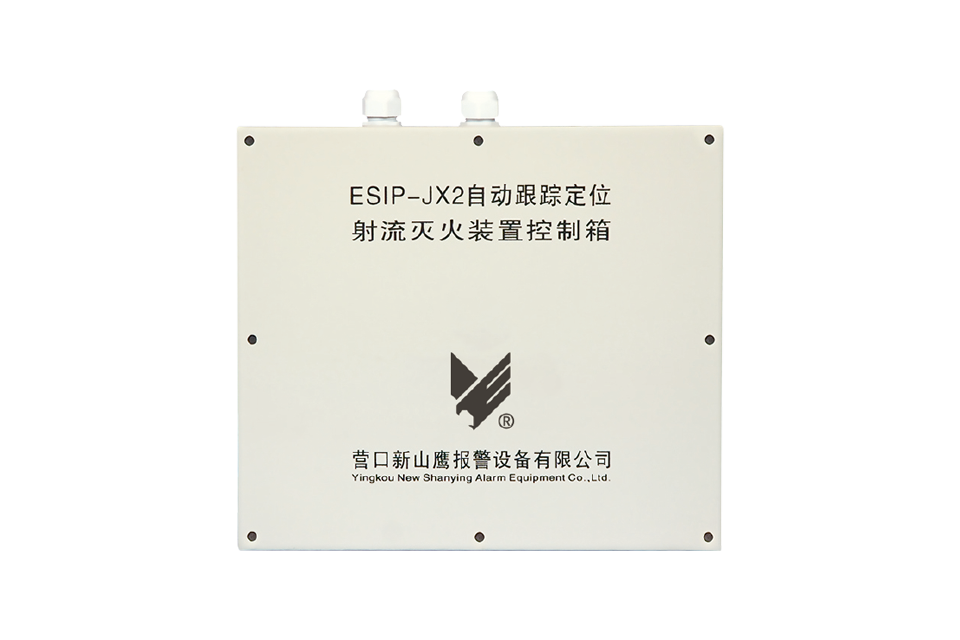

Fire extinguishing device control box

Product Features

It is a supporting product developed to provide power for the ZDMS0.8/20S-YKS50 and ZDMS0.8/30S-YKS55 fire extinguishing devices and receive various signals from the fire extinguishing devices.

The connection between it and the fire extinguishing device adopts a dedicated matching wiring harness and is directly connected with an aviation plug, which greatly reduces the difficulty of wiring in high Spaces. It adopts single-chip microcomputer control technology to control the start, positioning, opening/closing of electric valves, etc. of the water cannon, and operates stably. Reliable.

Product Parameters

Product modelESIP-JX2
Working voltageAC220V
Working temperature0℃~ 55℃
Storage temperature-25℃ ~70℃
Relative humidity≤ 92%(40℃ )
Output powerDC24V/150W
Output power of electric valveDC24V/5A
Lightning protectionAC220 lightning protection input, RS485 lightning protection output
External dimensions320mm×280mm×70mm
