Large-space fire extinguishing system

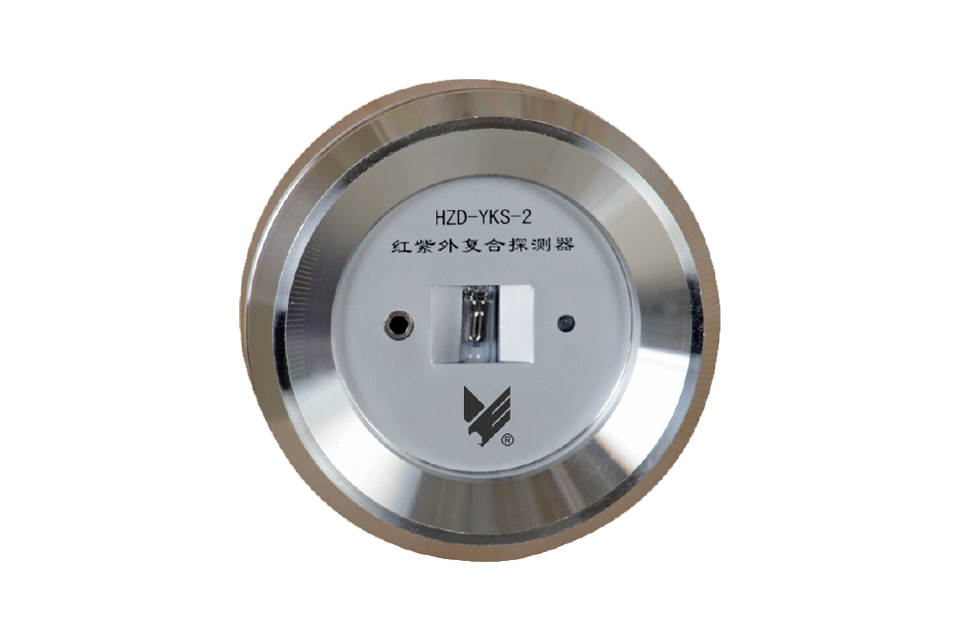

Red and ultraviolet composite deep detector

Product Features

The start-up detector is matched with the automatic tracking and positioning jet fire extinguishing device (high-flow nozzle) of model ZDMP0.25/5S-YKS6.

Up to 4 high-flow nozzles can be controlled.

Dual-band red and ultraviolet detection can detect fire sources at an early stage, with a rapid response and an extremely low false alarm rate.

It adopts single-chip microcomputer control technology, with strong anti-interference ability and stable and reliable operation.

It has communication functions, facilitating remote monitoring.

The sensitivity can be set on site.

Product Parameters

Product model HZD-YKS-2
Working voltage DC12V
Power consumption ≤ 1W
Installation height 6~15m
Detection radius ≤ 12m
Response time ≤ 30s
Working temperature 4℃ ~55℃
External dimensions Φ128mm×50mm
