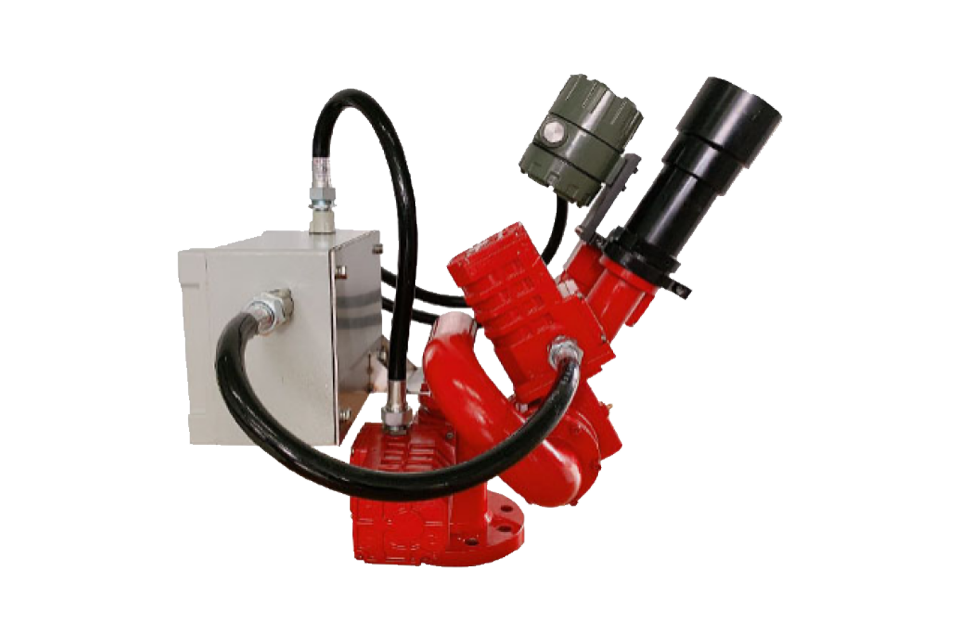

Large-space fire extinguishing system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Product model	ZDMS0.8/30S-YKS55Ex
Rated flow	20L/s-30L/s
Rated pressure	0.8MPa
Jet radius	62m
Larger protection radius	55m
Installation method	Pedestal/hoisting
Detection Angle	-90° -30°
Communication method	RS485
Greater number of logins	The control box can accommodate up to 8 units at most
Jet mode	Columnar/foggy
Enclosure protection grade	IP66
Explosion-proof level	Ex db Ⅱ B T6 Gb / Ex tb Ⅲ C T80℃ Db

Go Back

Schematic diagram of the pipeline network for the YKS50/55 automatic tracking and positioning jet fire extinguishing system
