Large-space fire extinguishing system-Yingkou New Shanying Alarm Equipment Co., Ltd.

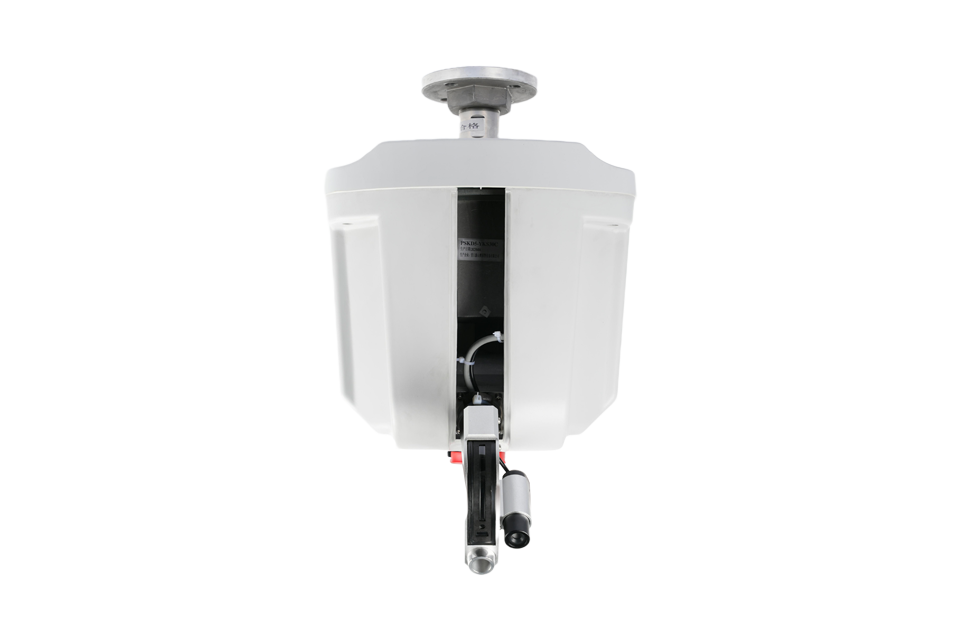

Product model	ZDMS0.6/5S-YKS35CD
Larger protection radius	35m
Rated working pressure	0.6MPa
Rated flow	10L/s
Installation height	6-15m
Interface diameter	DN32
Product quality	8kg
External dimensions	350mm×293mm×472mm
Voltage/Power consumption	AC220V/ Monitoring: 1W, Scanning: 50W
Communication method	CAN
Fire response time	≤ 30s
Working environment temperature	4℃ ~55℃
Horizontal rotation range	0~360°
Vertical rotation range	-90°~30°
Water spraying method	It swings back and forth after direct exposure
Connect the junction box	Power junction box of ESIP-JX1D fire extinguishing device
Fire extinguishing device is equipped with a control box	On-site manual control box for ESIP-MCP8D fire extinguishing device
Connect the solenoid valve	DN50 solenoid valve

Schematic diagram of the pipeline network for the YKS50/55 automatic tracking and positioning jet fire extinguishing system
