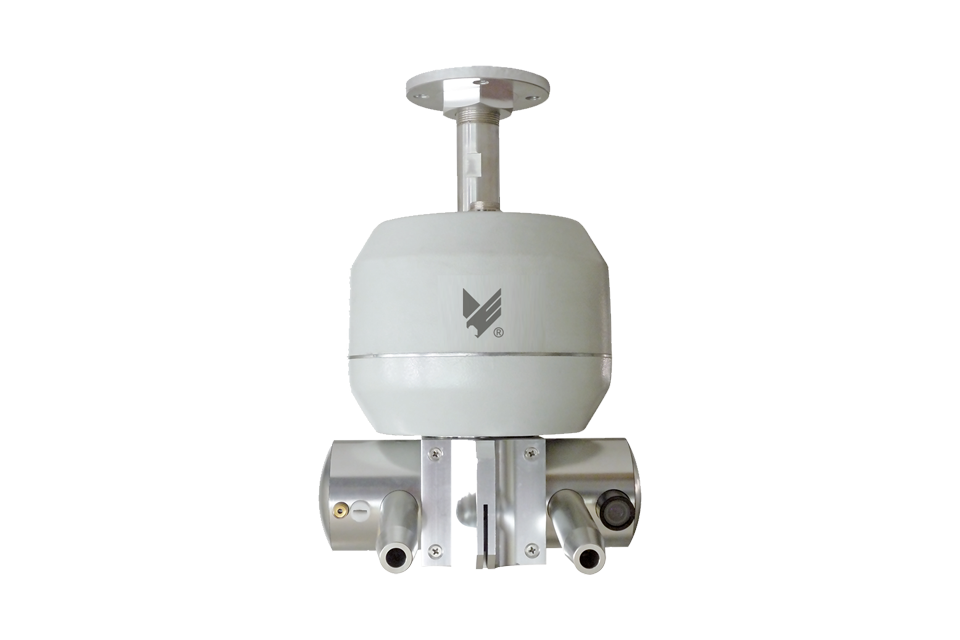

Large-space fire extinguishing system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Product model	ZDMS0.6/5S-YKS25(Original model ZTZ-123-YKS25)
Installation height	6~15m
Larger protection radius	25m
Greater traffic	5L/s
Rated working pressure	0.6MPa
Greater work pressure	1MPa
Interface diameter	DN25
Working voltage	AC220V
Power consumption	Monitoring :1W, Scanning :50W
Communication method	RS485(Communicate with the on-site manual control box)
Fire response time	≤ 30s
Working environment temperature	4℃ ~55℃
Horizontal rotation range	0~360°
Vertical rotation range	The elevation Angle is 10° and the depression Angle is 95°
External dimensions	220mm×220mm×324mm
Matching junction box	ESIP-JX1
Connect the solenoid valve	DN50 solenoid valve

Schematic diagram of the pipeline network for the YKS50/55 automatic tracking and positioning jet fire extinguishing system
