Fire emergency lighting and evacuation indication system

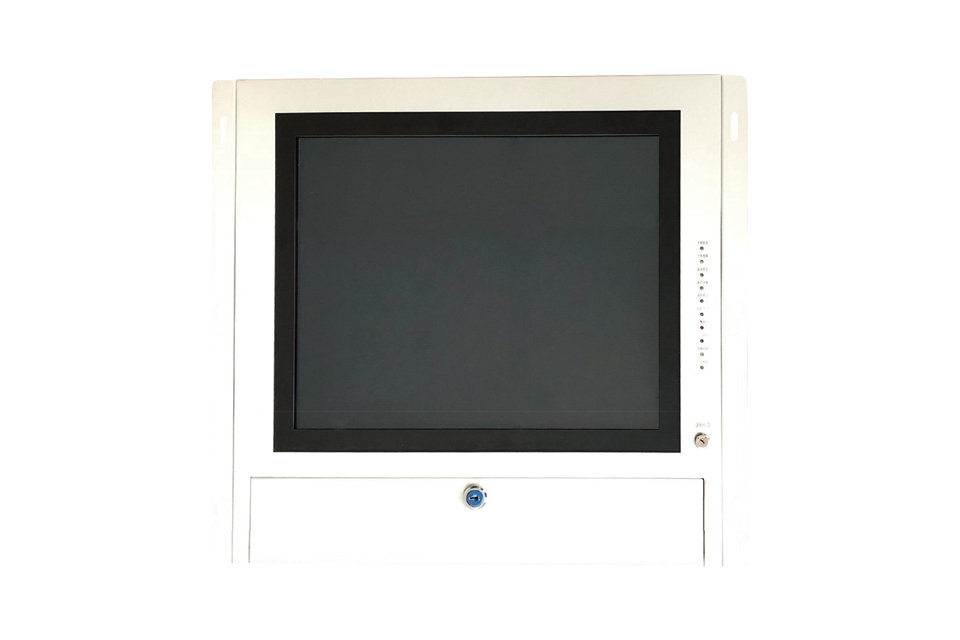

Emergency lighting controller

Product Features

The SY-C-38000 emergency lighting controller is designed and produced in accordance with GB17945-2010 and GB51309-2018. It can display the centralized power supply for emergency lighting and the working status of the lamps in real time. The structure is simple, maintenance is convenient, performance is stable, operation is reliable, repair is easy, service life is long, and it has a high cost performance among similar products.

Product Parameters

Product modelSY-C-3800Q
Product Specification482.5mm×440mm×150mm
Input voltage/frequencyAC220V±15%，50Hz
Emergency time of backup power supply>3H
System communication modeCAN bus
Display modeGraphic and text display
Loop interfaceTwo ( It can be expanded to 16 )
Carrying capacityLamp≤ 3200 eps<128
Display device17-inch industrial LCD display screen
FAS interfaceStandard RS232, RS485, and passive dry contact interlocking
Working temperature10℃ ~+50℃
Working humidity≤ 93%RH
Installation methodCabinet-type
Remote debuggingHave networking function
