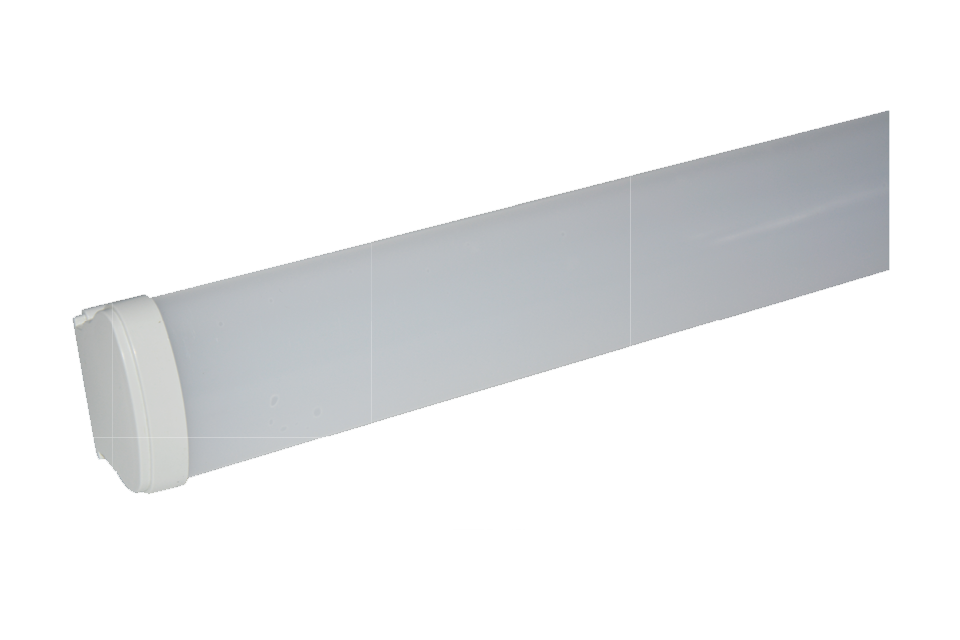

Fire emergency lighting and evacuation indication system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Product model	SY-ZFJC-E36W-31772
Rated power supply voltage	DC36V
Main power consumption	36W
Enclosure protection grade	IP67
Use the name and parameters of the light source	LED 3030 DC3.0V 1W
Emergency output luminous flux	≥ 50lm
Emergency conversion time	≤ 3S
Emergency working hours	90min
Operating ambient temperature	0℃ ~55℃
Adapt to the relative humidity of the environment	<95%
External dimensions	1200mm×45mm×50mm
Installation method	Wall-mounted

Emergency lighting centralized power supply (Special emergency power supply for fire emergency lamps)
