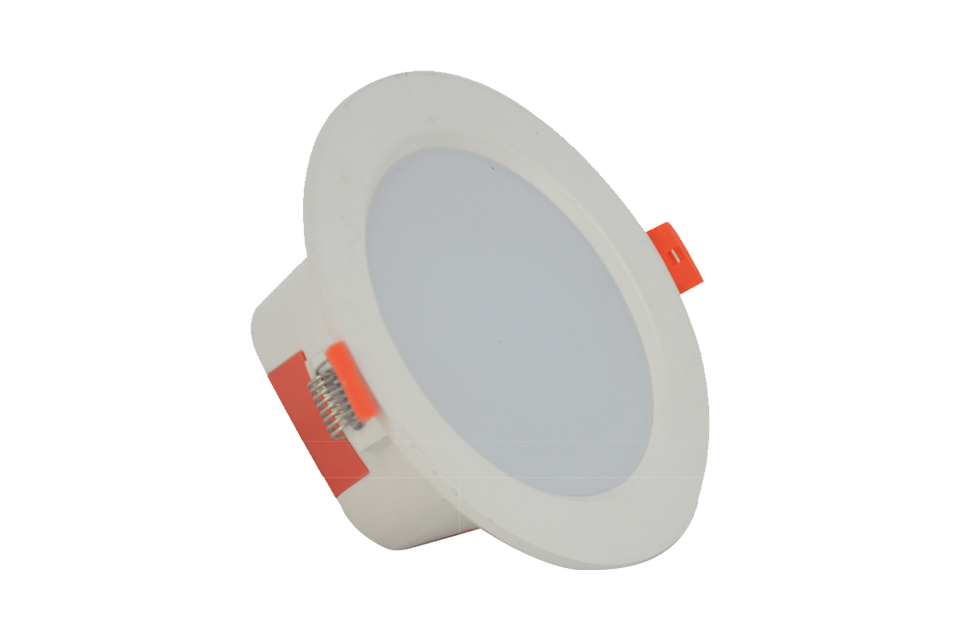

Fire emergency lighting and evacuation indication system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Product model	SY-ZFJC-E4W-31710
Enforce standards	GB17945-2010
Power supply voltage	DC36V
Main power consumption	4W
The enclosure protection grade uses a light source	IP30
Name and parameters	LED 2835 1W DC3.0V 1W
Emergency output luminous flux	≥ 200lm
Emergency conversion time	≤ 3S
Emergency working hours	90min
Operating ambient temperature	0℃ ~55℃
Adapt to the relative humidity of the environment	<95%
Installation method	Embedded
External dimensions	Φ120mm×45mm

Emergency lighting centralized power supply (Special emergency power supply for fire emergency lamps)
