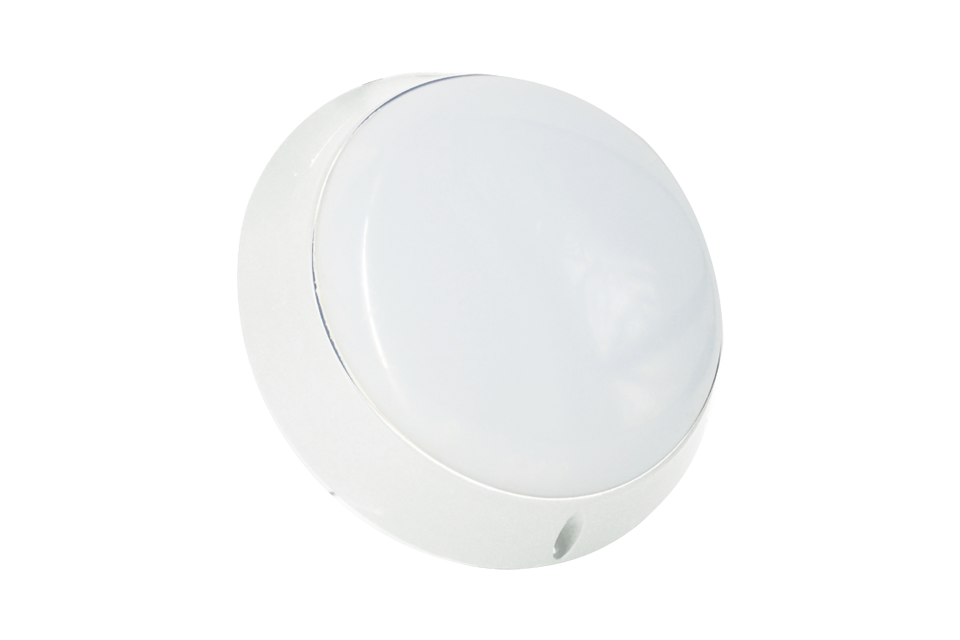

Fire emergency lighting and evacuation indication system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Product model	SY-ZFJC-E12W-33720
Enforce standards	GB17945-2010
Rated power supply voltage	DC36V
Main power consumption	12W
Enclosure protection grade	IP30
Use the name and parameters of the light source	LED 2835 1W DC3.0V 1W
Emergency output luminous flux	≥ 300lm
Emergency conversion time	≤ 3S
Emergency working hours	90min
Operating ambient temperature	0℃ ~55℃
Adapt to the relative humidity of the environment	<95%
Installation method	Ceiling-mounted type
External dimensions	Φ178mm×60mm

Emergency lighting centralized power supply (Special emergency power supply for fire emergency lamps)
