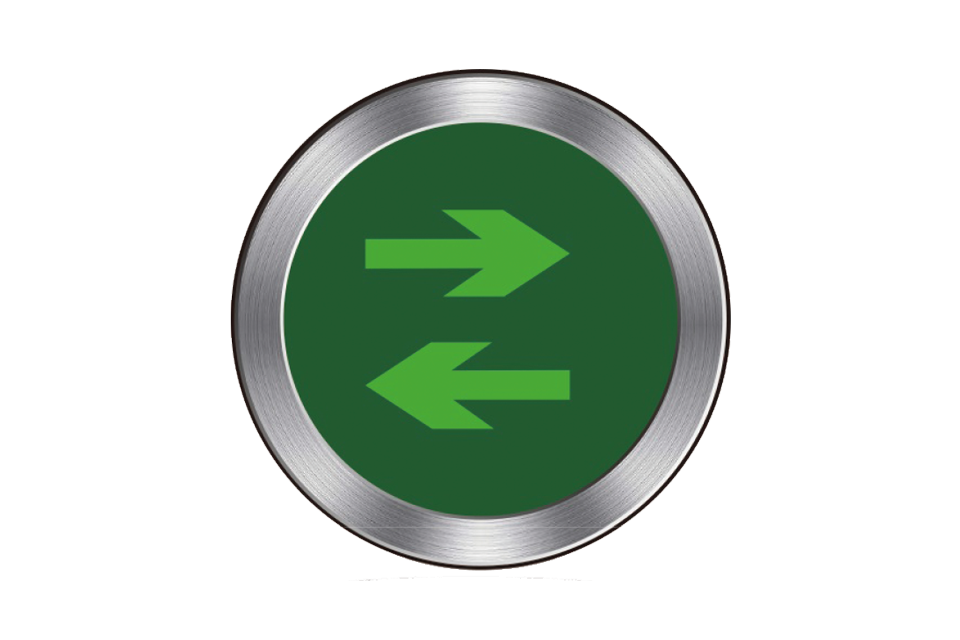

Fire emergency lighting and evacuation indication system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Product model	SY-BLJC-1LRE11W-31630
Enforce standards	GB17945-2010
Rated power supply voltage	DC36V
Main power consumption	1W
Enclosure protection grade	IP67
Use the name and parameters of the light source	LED、DC3.0V 0.2W
Light source model	4014
Emergency output surface brightness	50cd/m²-300cd/m²
Emergency conversion time	≤ 5S
Emergency working hours	90min
Operating ambient temperature	0℃ ~55℃
Adapt to the relative humidity of the environment	<95%
Installation method	Underground type
External dimensions	Φ170mm×40mm

Emergency lighting centralized power supply (Special emergency power supply for fire emergency lamps)
