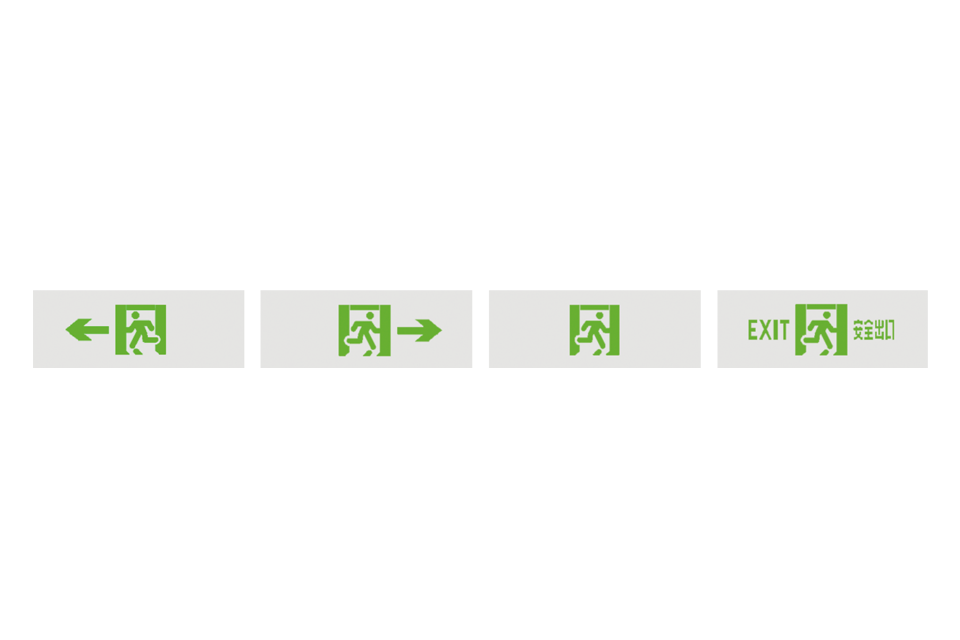

Fire emergency lighting and evacuation indication system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Product model	SY-BLJC-1LROE11W-313X
Rated power supply voltage	DC36V
Main power consumption	1W
Enclosure protection grade	IP30
Use the name and parameters of the light source	LED、DC3.0V 0.5W
Light source model	546
Emergency output surface brightness	50cd/m²-300cd/m²
Emergency conversion time	≤ 5S
Emergency working hours	90min
Operating ambient temperature	0℃ ~55℃
Adapt to the relative humidity of the environment	<95%
External dimensions	356mm×146mm×24mm
Installation method	Embedded
