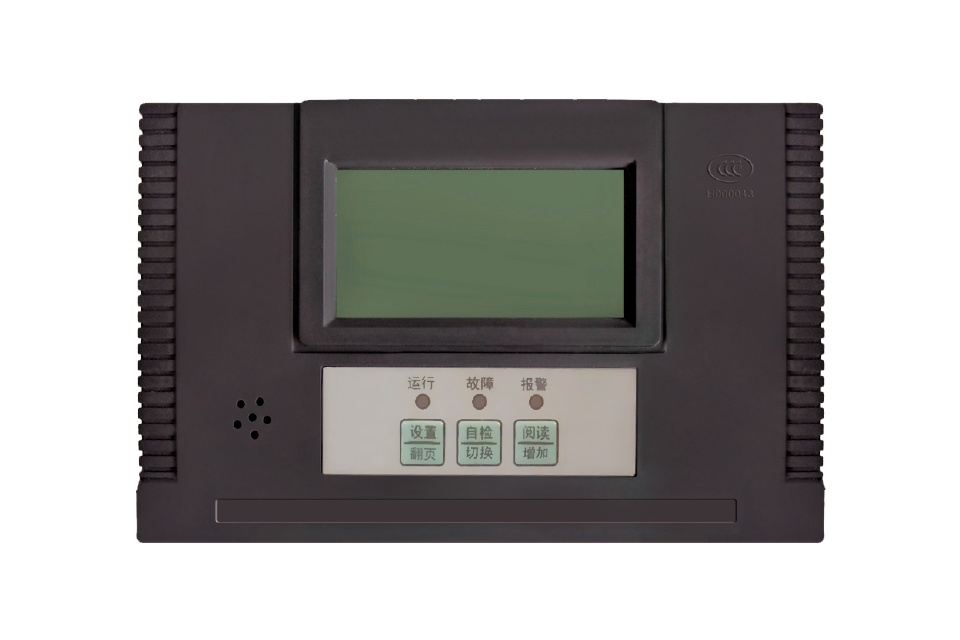

Electrical fire monitoring system-Yingkou New Shanying Alarm Equipment Co., Ltd.

It operates in a networked manner with the electrical fire monitoring equipment produced by our company.

There are 5 channels of residual current detection and 5 channels of temperature detection (corresponding to 10 network addresses).

It has the function of monitoring faults in sensor circuits;

Use an AC220V power supply.

Product model	DH-YKS4943
Working voltage	AC220V +10% 50Hz AC220V -15% 50Hz
Working current	≤ 10mA(AC220V/50Hz）
Set the alarm current	300mA~990mA(Step 10mA)
Set the alarm temperature	55℃~140℃(Step 1℃)
The number of channels and detection range	Five residual currents（0~999mA）
5-channel temperature	25℃ ~ 140℃
Bus address range	1-127
External dimensions	160mm×99mm×45mm
Material	ABS
Installation method	There are multiple installation methods, including track installation, wall-mounted installation, and panel embedded installation
Enforce standards	Optional GB14287-2014 Electrical Fire Monitoring System

Electrical fire monitoring system diagram
