It operates in a networked manner with the electrical fire monitoring equipment produced by our company.

There are 10 residual current detection channels (corresponding to 10 network addresses);

It has the function of monitoring faults in sensor circuits;

Use an AC220V power supply.

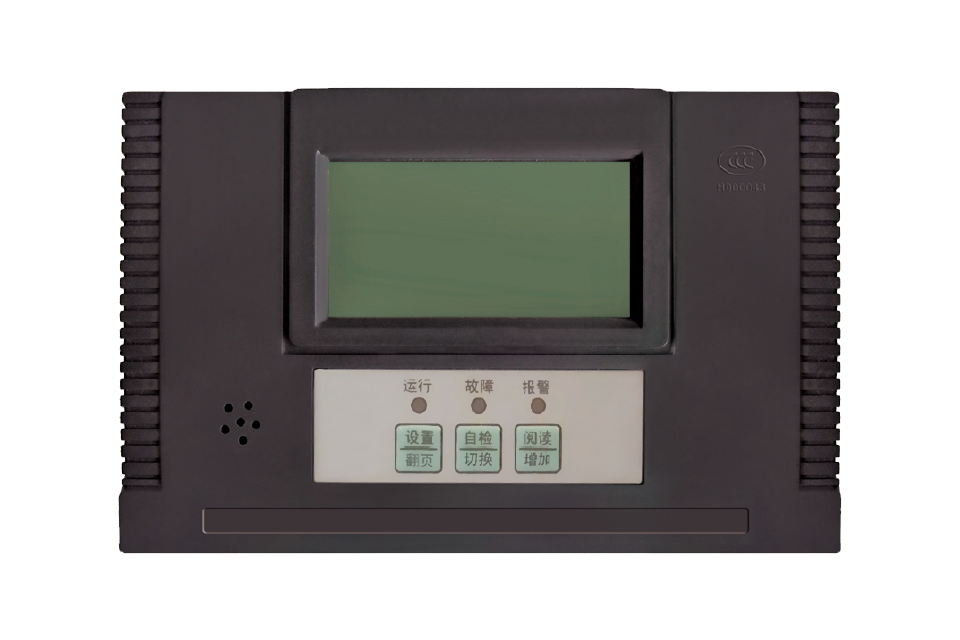

Product model	DH-YKS4942
Working voltage	AC220V/50Hz
Working current	≤ 10mA(AC220V/50Hz）
Set the alarm current	300mA~990mA(Step 10mA)
The number of channels and detection range	Ten residual currents (0~999mA)
Bus address range	1~127
External dimensions	160mm×99mm×45mm
Material	ABS
Installation method	Multiple installation methods are available, including track installation, wall-mounted installation, and panel embedded installation
Enforce standards	GB14287-2014 Electrical Fire Monitoring System

Electrical fire monitoring system diagram
