Electrical fire monitoring system-Yingkou New Shanying Alarm Equipment Co., Ltd.

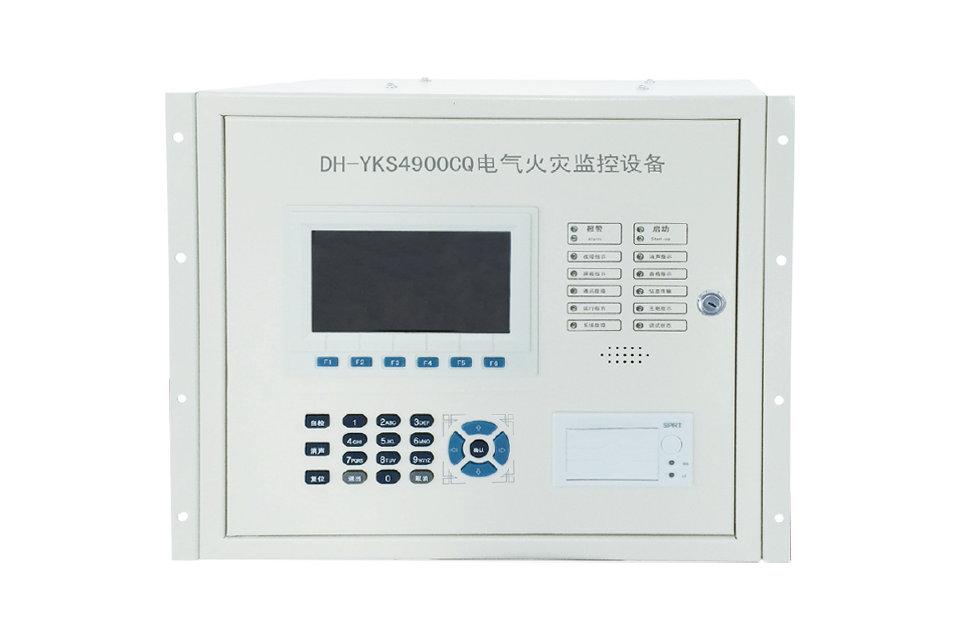

Product model	DH-YKS4900CQ
Equipment capacity	4 loop boards ×2 loops ×127 points =1016 bus addresses
Liquid crystal specification	7-inch TFT color LCD with a resolution of 800×3(RGB)×480
Working voltage	AC220V +10% 50Hz AC220V -15% 50Hz
Greater power consumption	80W
Signal output	Alarm output :1 group of DC24V, 0.05A; Control output :1 group of DC24V, 0.05A
Wire system requirements	The electrical fire monitoring equipment and the electrical fire monitoring detector are connected by a non-polar two-wire system. The connection wire is a copper core wire with a diameter of ≥ 1.0mm²the longest communication distance is 1000 meters.
Installation method	Embedded (can be placed in a standing cabinet or a music table)
External dimensions	483mm×220mm×399mm
Usage environment	Working temperature:0℃ ~40℃ Relative humidity:≤ 95%

Electrical fire monitoring system diagram
