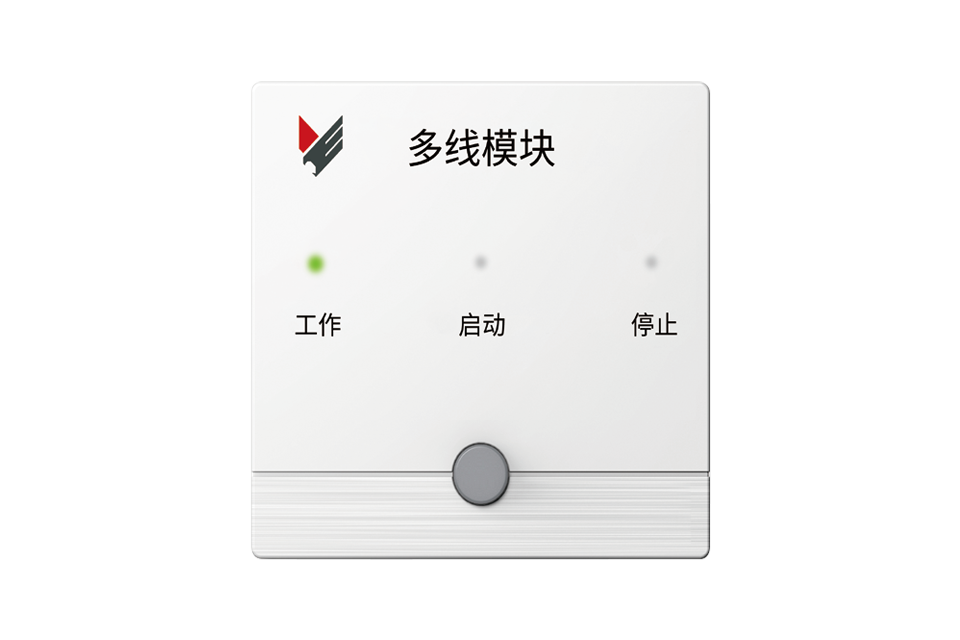

Two-wire system, non-polar;

Can be automatically addressed;

The start and stop of controllable equipment are achieved through the matching YB5XXXX series controller.

It is equipped with a status indicator light and a feedback receiving indicator light.

It has ID encoding.

Product model	XD-YKS5220
Working voltage	DC24V(Pulse)
Bus static current	≤ 2mA Start ≤ 20mA
Output contact capacity	DC30V/5AAC250V/5A
Wiring method	Non-polar two-bus
Debugging	Bus voltage detection
Working environment	Relative humidity :≤95% Storage temperature :-20℃ to 70℃
