Two-bus, non-polar

Does not occupy an address point;

When connected to the YB4XXXX series bus products, it shares 254 addresses with the YB5XXXX series bus products, enabling mixed connection.

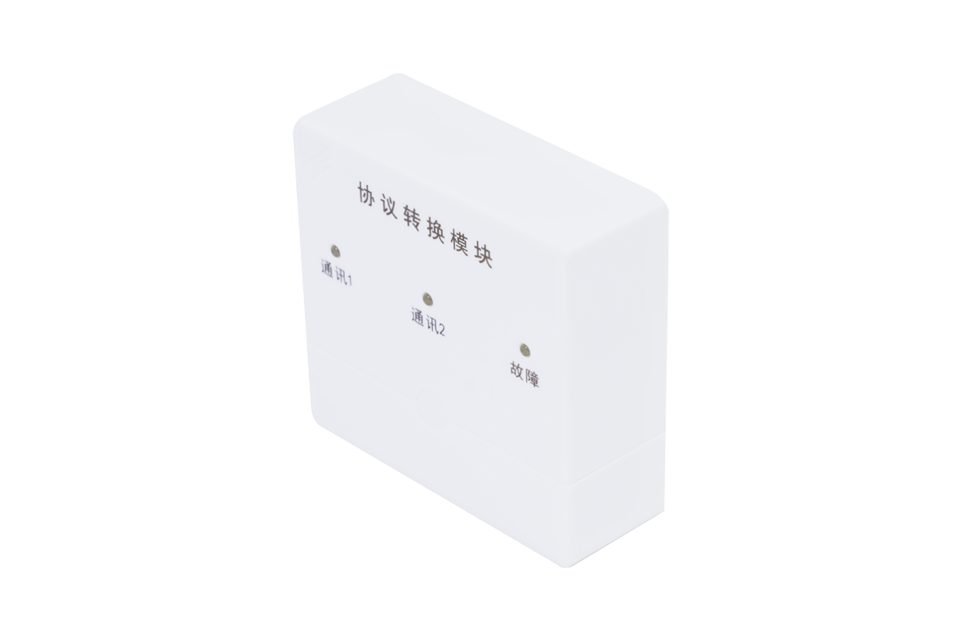

Product model	JYM-YKS5205
Working voltage	DC24V(DC16V~DC27V)
Bus output current	≤ 100mA
The bus has more points	254
Wiring method	Non-polar two-bus
Debugging	Bus voltage detection
Fault detection	It has the function of detecting the fault of low two-bus voltage
Working environment	Relative humidity :≤95% Storage temperature :-20℃ to 70℃
