Two-bus, non-polar

Electronic coding method, occupying one address point;

Provide two sets of passive normally open contacts;

It has the function of line fault detection and selection;

It has ID encoding.

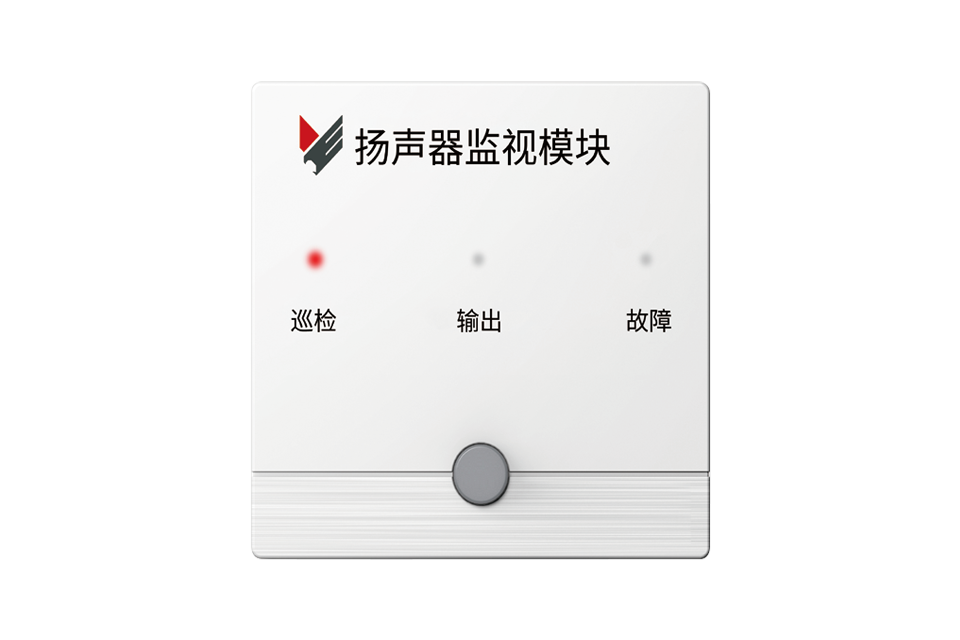

Product model	JGM-YKS5240
Working voltage	DC24V(DC16V~DC27V)
Static current	≤ 170uA
Output contact	Passive contact signal, capacity 30VDC/2A, 125VAC/1A
Control mode	Continuous or intermittent output
Wiring method	Non-polar two-bus
Debugging	Support debugging keys and bus voltage detection
Working environment	Relative humidity :≤95% Storage temperature :-20℃ to 70℃
