Two-bus, non-polar

Electronic coding method, occupying one address point;

Connect non-coded detectors to the network;

It has the function of line fault detection and selection, monitoring output open circuit and output short circuit.

It has ID encoding.

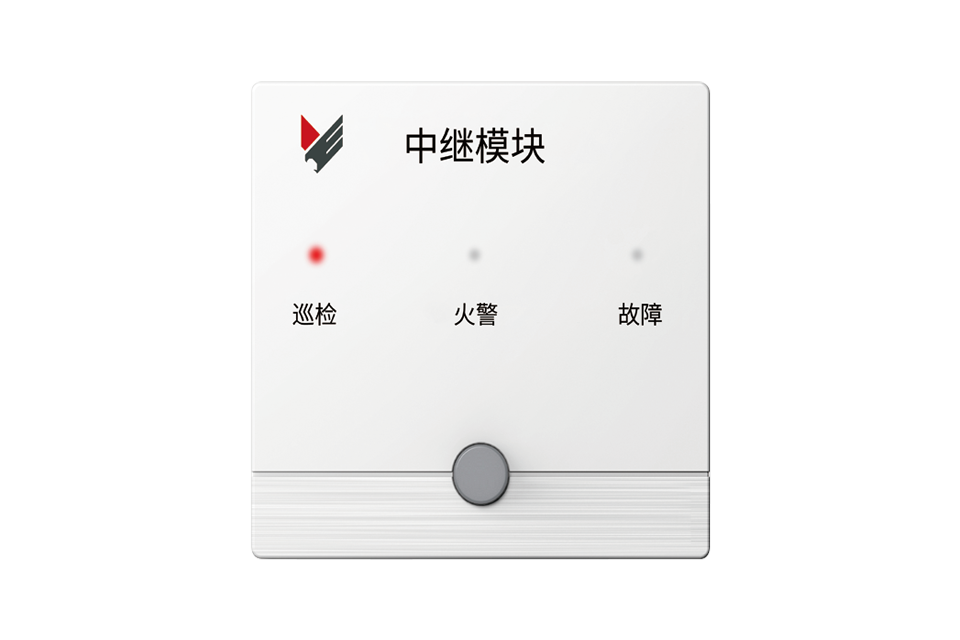

Product model	JM-YKS5201
Working voltage	DC24V(DC16V~DC27V)
Static current	≤ 850uA
Alarm current	≤ 2mA
Access the product	15 non-coded ordinary detectors (static current detectors) 400uA per individual
Wiring method	Non-polar two-bus
Debugging	Bus voltage detection
Working environment	Relative humidity :≤95% Storage temperature :-20℃ to 70℃
