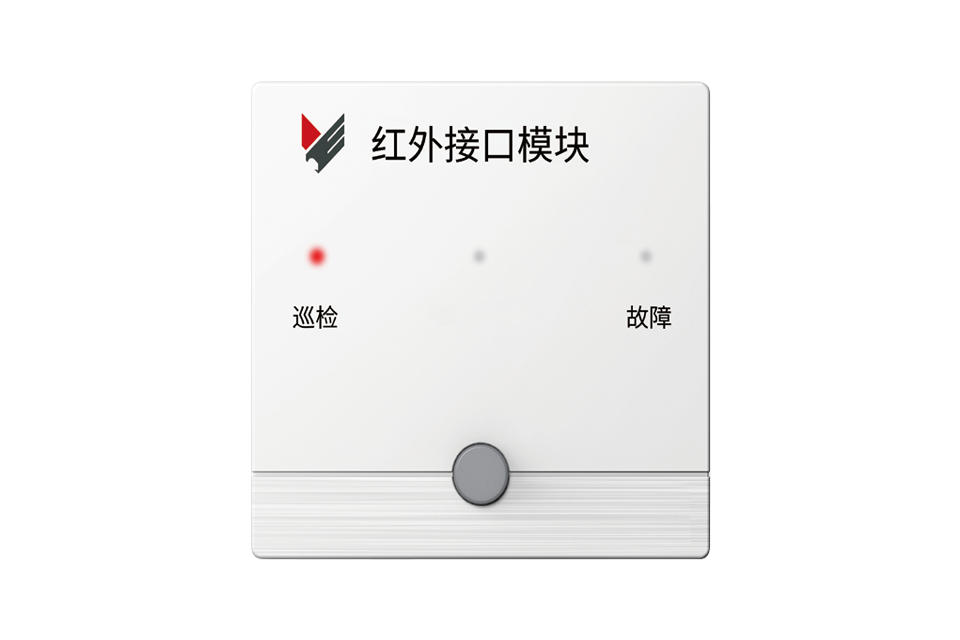

Two-bus, non-polar

Electronic coding method, occupying one address point;

Connect non-coded infrared beam detectors, image-based fire detectors, etc. to the network and provide power for the detectors;

It has the function of line fault detection and selection, monitoring output open circuit and output short circuit.

It has ID encoding.

Product model	JHM-YKS5202
Working voltage	DC24V(DC16V~DC27V)
Static current	≤ 450uA
Alarm current	≤ 1mA
Power supply voltage of the detector	DC24V
Coding method	Electronic coding
Wiring method	Non-polar two-bus
Debugging	Bus voltage detection
Working environment	Relative humidity :≤95% Storage temperature :-20℃ to 70℃
