Two-bus, non-polar

Electronic coding method, occupying one address point;

Accept passive feedback signals from controlled equipment;

It can provide DC24V output and passive normally open contact signals without the need for DC24V.

It has the function of line fault detection and selection, monitoring input open circuit, output open circuit and output short circuit.

It has ID encoding.

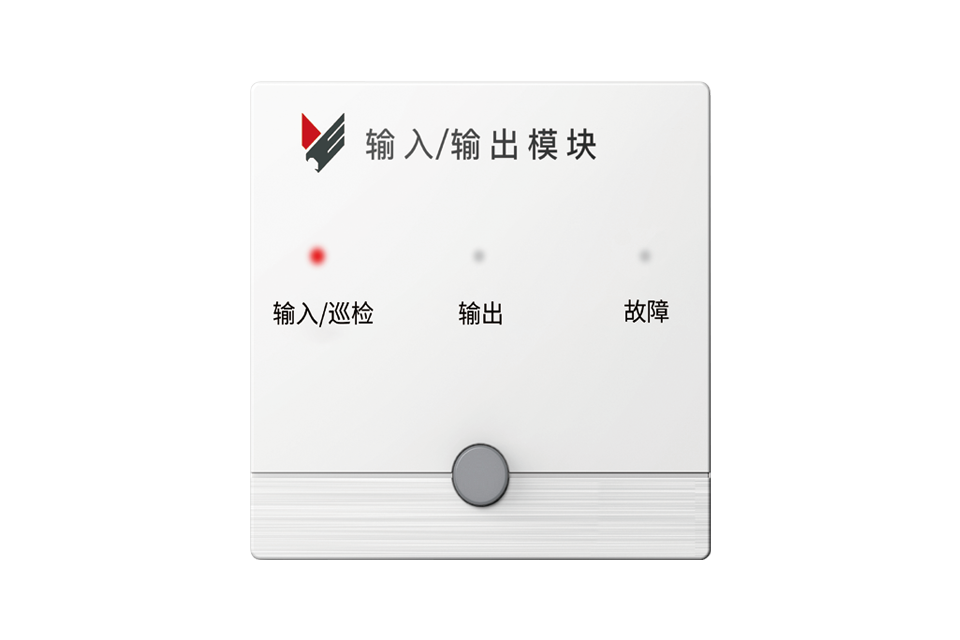

Product model	JKM-YKS5211
Working voltage	DC24V(DC16V~DC27V)
Static current	≤ 170uA
Alarm current	≤ 1mA
Coding method	Electronic coding
Wiring method	Non-polar two-bus
Output mode	It adopts a level mode with DC24V passive contacts
Debugging	Support debugging keys and bus voltage detection
Working environment	Relative humidity :≤95% Storage temperature :-20℃ to 70℃
