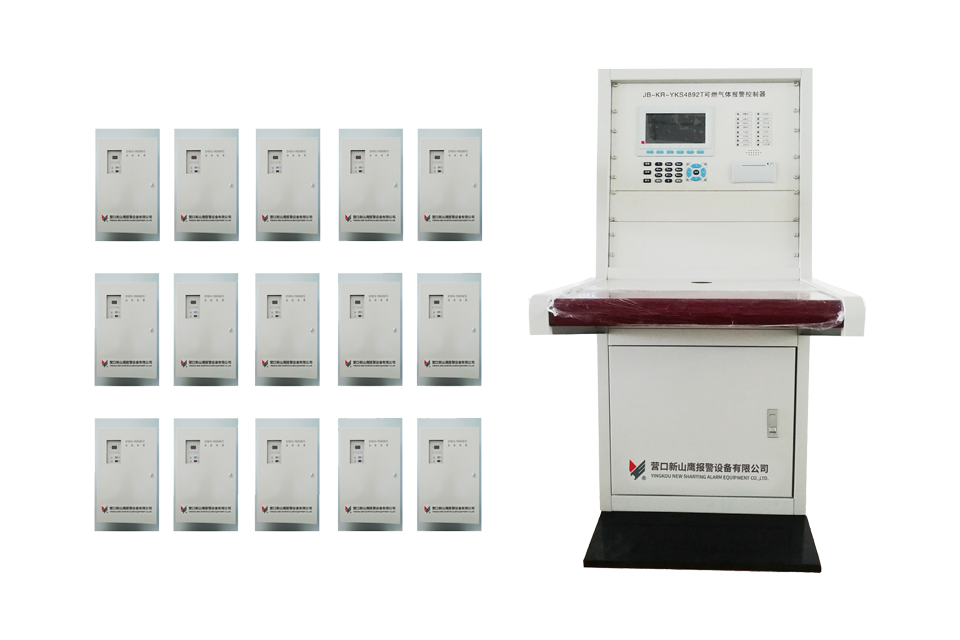

Automatic fire alarm system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Meet the standard "GB16808-2008 Combustible Gas Alarm Controller";

Adopt 7 "TFT color LCD display;

It has 16 independent loop buses, and each loop has 127 addresses.

Reserved loop bus, RS485 bus, external CAN bus, RS232 and Ethernet interfaces.

Product model	JB-KR-YKS4892T
Power supply voltage	AC220V +10%，50Hz AC220V -15%，50Hz
Spare battery	DC12V/24Ah Two sections connected in series
Power consumption	≤20W(no-load)
Main power insurance	3A
Output insurance	5A
Output current	The rated current of each DC24V output terminal is 3A
External interface	Loop bus, RS485 bus, external CAN bus, RS232, Ethernet
Capacity of this machine	Loops :16 loops, with 127 points in each loop Equipment :64 nodes (RS485) Slave :64 nodes (external CAN)
Working temperature	0~40℃
Relative humidity	≤95%

Fire display panel
