Automatic fire alarm system

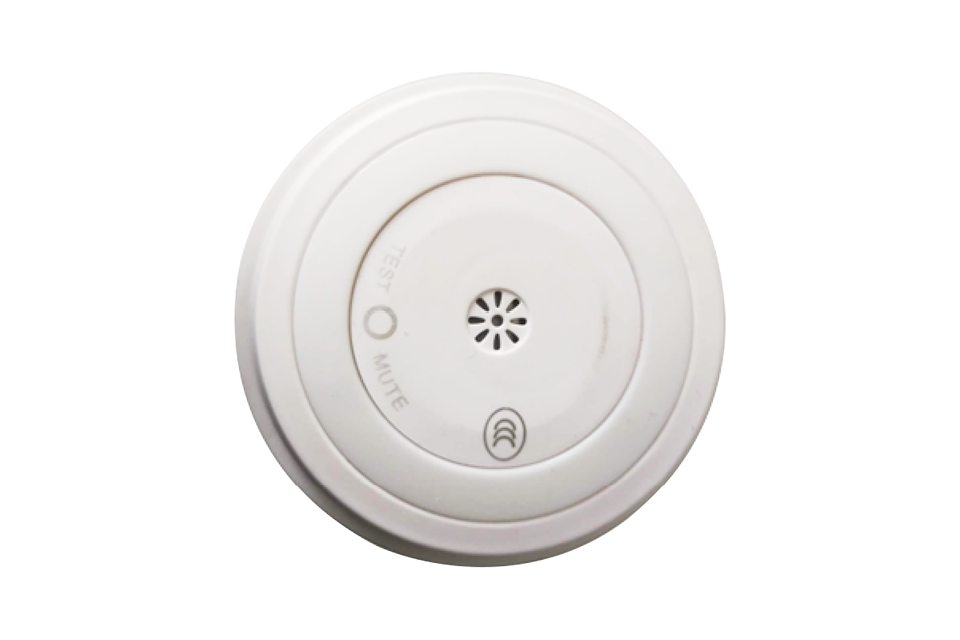

Independent photoelectric smoke detector and alarm

Product Features

An intelligent fire alarm product that uses the principle of scattered light effect to detect the concentration of smoke in the air and processes the data with microprocessor technology.

NBIOT wireless communication technology uses B5/B8 frequency bands, featuring low standby power consumption and long communication range.

Information interaction with the alarm monitoring platform or mobile phone APP is realized through the cloud-based core network;

It is easy to install and can be fixed with expansion screws or directly adhered to the roof with 3M glue.

Product Parameters

Product model JY-G-YKS4509N
Working voltage 3V CR17450(Lithium manganese battery)
Static current <10uA
Colour white
External dimensions Φ104mm×H50mm
Working environment Temperature -10℃~+55℃
Relative humidity ≤ 92%(40℃)
