Automatic fire alarm system

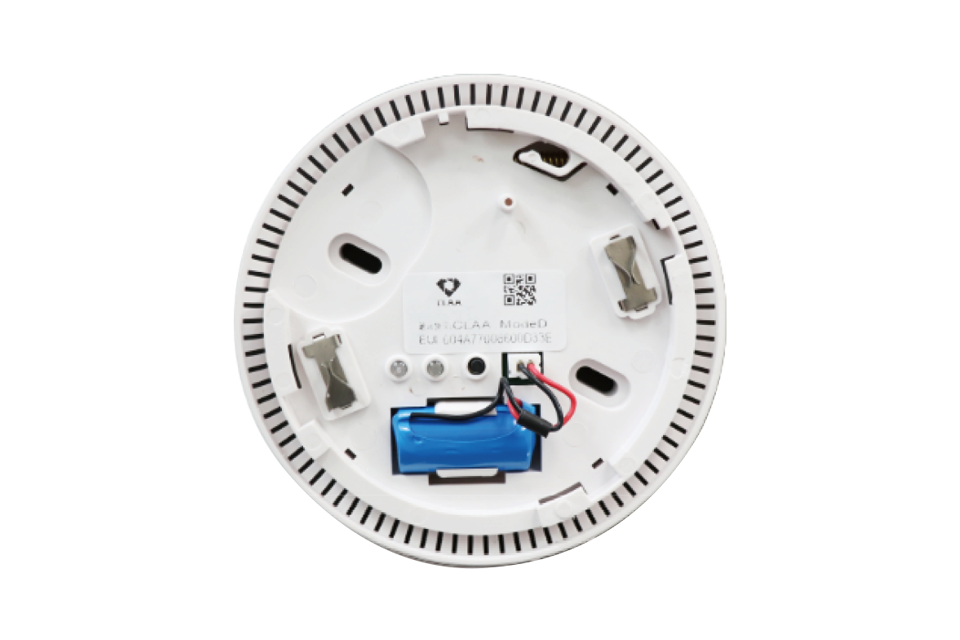

Wireless base

Product Features

Display device: LED

Reserved interface: Communication with independent smoke detectors;

Communication method: Wireless

Other advantages and features: Wireless communication, low power consumption;

It adopts LORAWAN communication technology and is used in conjunction with the JY-G-YKS4506 independent photoelectric smoke detector. It can be connected to the LORAWAN gateway and achieve information interaction with the control and monitoring platform or mobile phone APP through the cloud-based core network.

Product Parameters

Product modelJDZ-YKS4562
Working voltageDC3V(CR123A Lithium-manganese battery)
Working current (Monitoring)<6μA
Working temperature0C~50℃
Relative humidity≤ 92%(40±2℃)
External dimensionsΦ120mm×H18mm
Transmission distance2 kilometers (open area)
Use frequency band450-510MHz
Transmission power<20dBm
Comply with the agreementLORAWAN 1.0.2 was released by the LORA Alliance;
OMS-001-CLAA Code Naming Specification and Principles (Released by the CLAA Alliance);
TES-003-CLAA Technical Requirements for the Use of 470M-510M Frequency Bands in China (Released by the CLAA Alliance);
TES-004-CLAA Extension Specification for MAC Commands (Released by the CLAA Consortium)
Web search modeMultimodal mode
* Special requirements can be customized and developed
