Automatic fire alarm system-Yingkou New Shanying Alarm Equipment Co., Ltd.

It can be used independently with a 3V battery power supply.

It has the function of interconnection alarm;

When equipped with the JDZ-YKS4562 wireless base, it can be used as an Internet of Things terminal product.

The buzzer sounds the alarm.

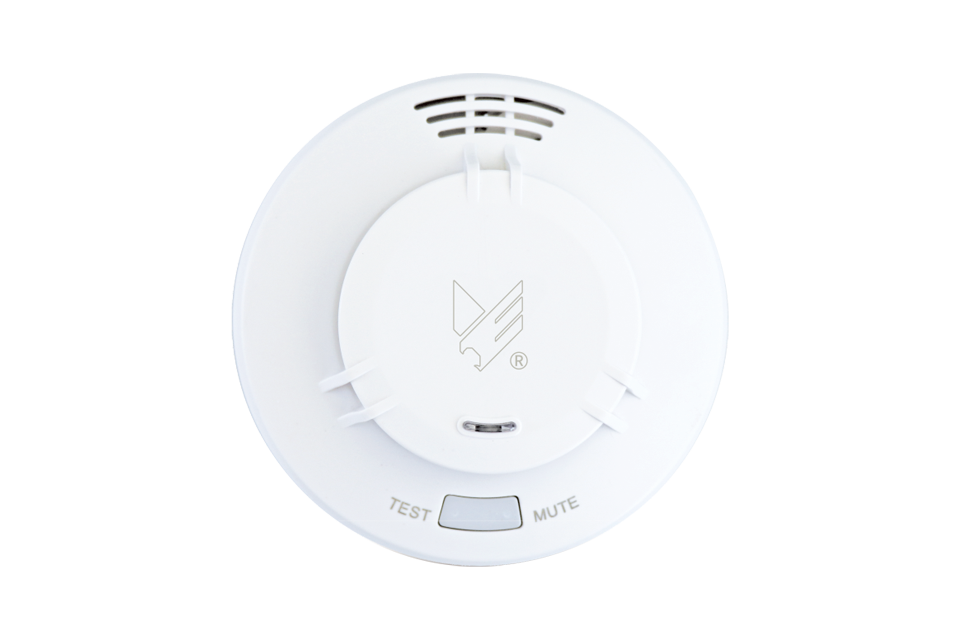

Product model	JY-G-YKS4506
Working voltage	DC3V(CR123A Battery)
Static current	<2μA
Alarm current	<25mA
Sound pressure level	≥80dB(At a distance of 3 meters, pause for 4 seconds and then ring for 1 second)
Alarm light indication	Red
Working temperature	0C~50℃
Relative humidity	≤ 92%(40±2℃)
Storage temperature	-20℃~60℃
Battery life	More than 3 years
Enforce standards	GB20517-2006
External dimensions	Φ120mm×H55mm
