Automatic fire alarm system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Product Features

Built-in integrated chip, imported NTC sensor, two-bus low-energy consumption design, bus capacity 254 points, with sound alarm. The appearance design of the silencing/test button is unique and beautiful.

Product Parameters

Product model	JW-ZO-YKS4596
Working voltage	DC24V(DC18V~DC24V)
Static current	<400uA
Alarm current	<3mA
Alarm sound	Buzzer 30~75dB
Wire system	Two-bus
Coding method	Larger electronic code address :254
Built-in battery	3.6V/80mAh
External dimensions	Φ130.5mmxH46.5mm
Enforce standards	GB22370-2008《Household fire safety system》

Automatic fire alarm system

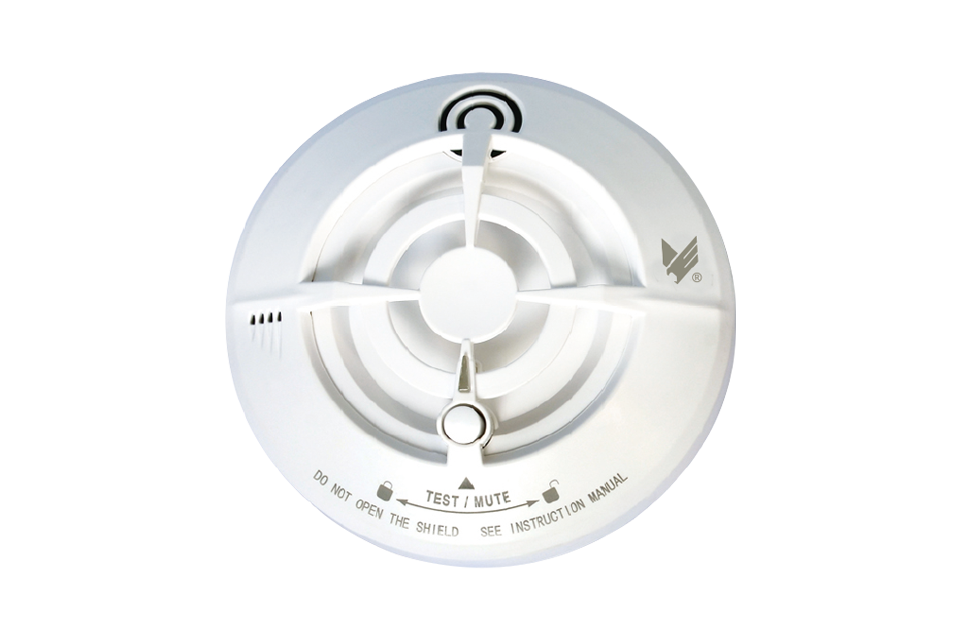

Point-type household temperature-sensing fire detector
