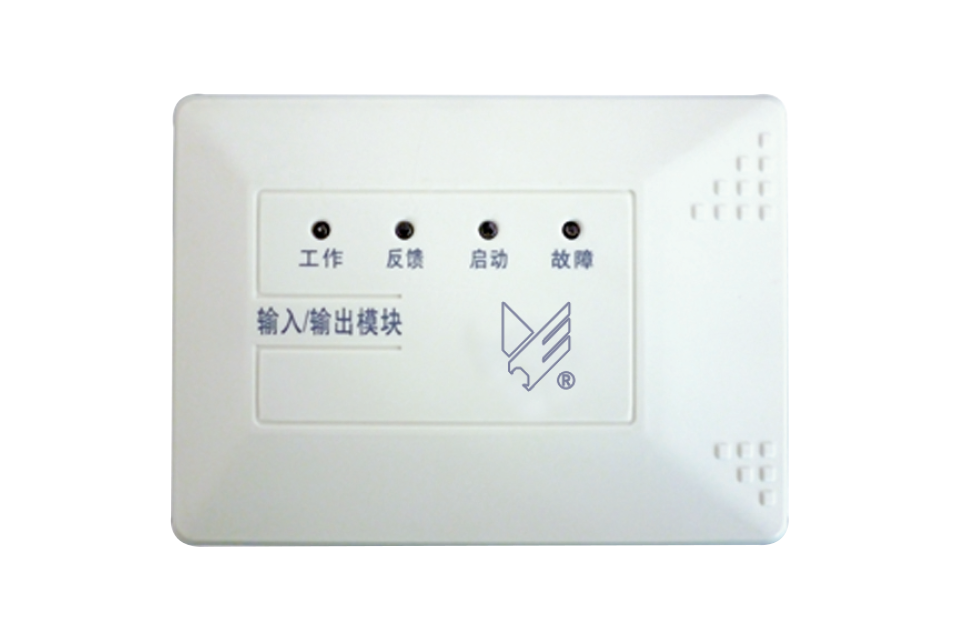

Automatic fire alarm system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Product Features

It is hung on the bus of the gas fire extinguishing control panel;

Receive the instructions from the fire extinguishing tray. When the fire extinguishing tray issues the start command, the module outputs passive contacts externally to control the start and stop of the gas fire extinguishing cylinder.

Feed back the current status to the fire extinguishing tray; It has the function of electronic coding.

Product Parameters

Product model	XK-YKS4216
Working voltage	DC18~24V
Power input	DC24V
Static current	≤ 450uA
Output	Passive contact30VDC/3A;250VAC/3A
Wire system	4 Wire system
Working temperature	-10℃ ~+55℃
Relative humidity	≤ 92%(40℃)
External dimensions	132.4mm×96.7mm×41.5mm

Automatic fire alarm system

Input/output module

Product Features

Product Parameters
