Automatic fire alarm system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Comply with GB16806-2006 Fire linkage Control system;

The display device adopts dot matrix liquid crystal 19264;

The reserved interfaces include USB, external CAN, and RS485 loop DC24V.

The communication methods include external CAN bus, RS485 bus and loop bus.

Other advantages and features: Each zone has an independent circuit and power supply, simple programming, and is cost-effective.

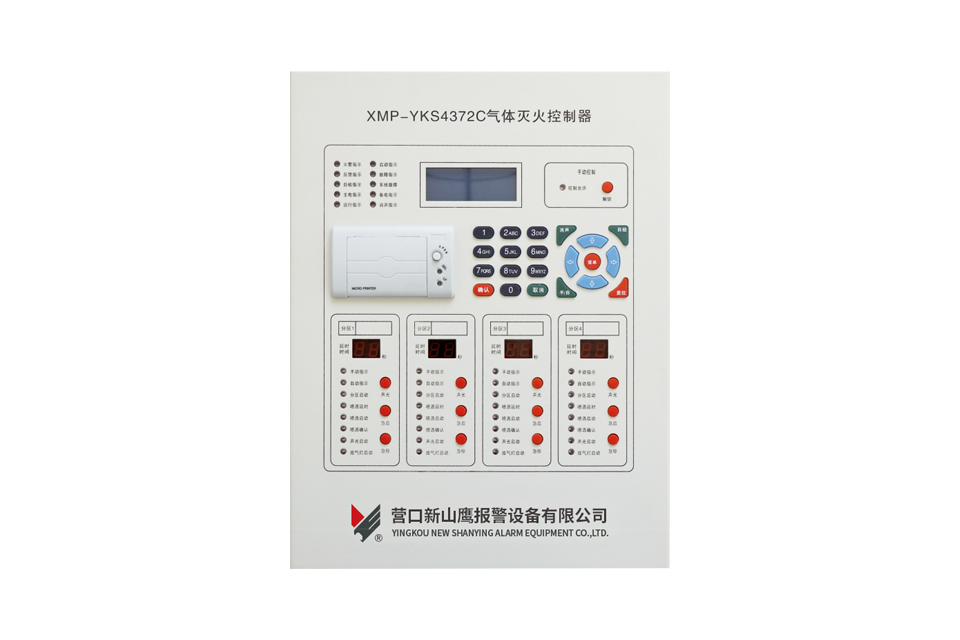

Product model	XMP-YKS4372C
Working voltage	Two batteries with a main power supply of AC220V and a backup power supply of DC12V/4.5Ah are connected in series
Working current (monitoring, alarm)	Monitoring/alarm ≤ 10W
Working temperature	0℃ ~40℃
Relative humidity	≤ 95%
Whole machine capacity	There are 4 fire extinguishing zones, with 63 address points in each zone
Structural form	Wall-mounted
External dimensions	340mm×120mm×450mm
Linear requirements	Power supply ZR-BV2×2.5, signal RVS2×1.5
Transmission distance	RS485<1500m、CAN<2000m、Loop 1500m(depending on the load quantity)
