Product Features

Directionless and non-polar;

The protection devices connected between the signal bus and the coding devices are suitable for engineering ring wiring and branch wiring.

When there is an open circuit in the signal bus, power will be supplied to the open circuit location through the ring wiring to ensure the normal operation of the line.

When a local short circuit occurs, the fault area is automatically isolated to ensure the normal operation of other coding devices.

Product Parameters

Product model	JGD-YKS4172
Usage environment	Temperature-20℃ ~50℃ Relative humidity :93RH±2%RH, no condensation
Working voltage	DC15-28V(Bidirectional non-polarity)
Working current	The current is ≤ 1.0mA during normal operation. The maintenance current after the action is 8.0mA
Protective conditions	It operates when the signal voltage is ≤ 10V
Action time	≤ 200ms

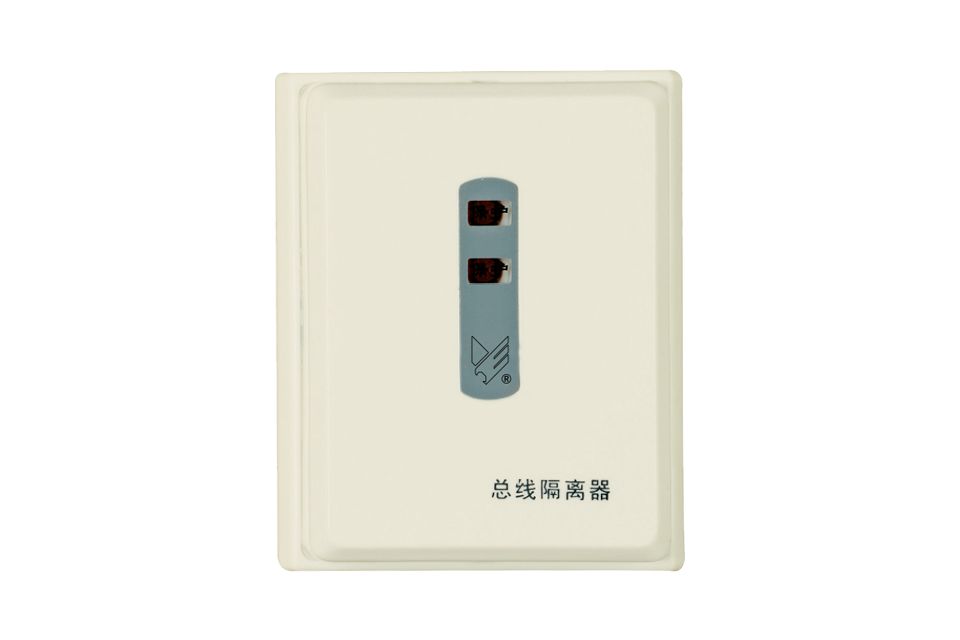

Status indication	Two red indicator lights (not on during normal monitoring but on during operation)
External dimensions	100mm×82mm×34mm
