Two-bus, non-polar

The electronic coding method occupies one address point;

Two sets of passive normally open contacts are provided to control 120V constant voltage audio signals.

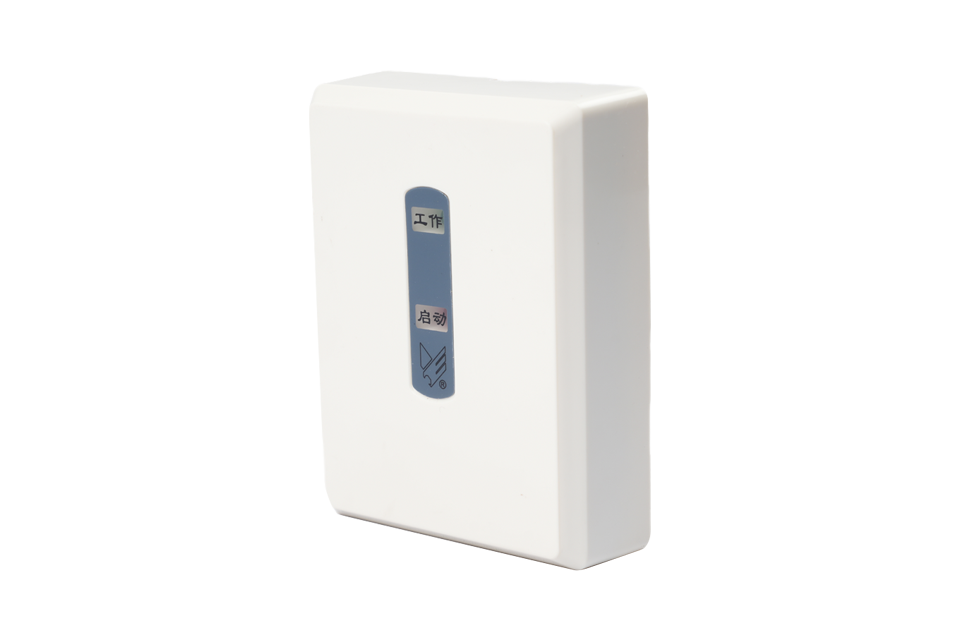

Product model	JGM-YKS4240
Working voltage	18~24V
Working current	≤ 450uA
Coding method	Electronic coding
Wiring method	The two-wire bus is non-polar
Output contact	Passive contact signal, capacity 30VDC/2A, 125VAC/1A
Control mode	Continuous or intermittent output
Environmental conditions	0℃ ~50℃ ; ≤ 92%(40℃ )
External dimensions	100mm×82mm×34mm
Material	ABS resin
