Two-bus, non-polar

Electronic coding method, occupying one address point;

It can provide DC passive normally open contact signals or point motion signals without the need for DC24V.

Receive passive feedback signals from controlled devices;

It has the function of line fault detection and selection, and monitors the open circuit fault of switch signals.

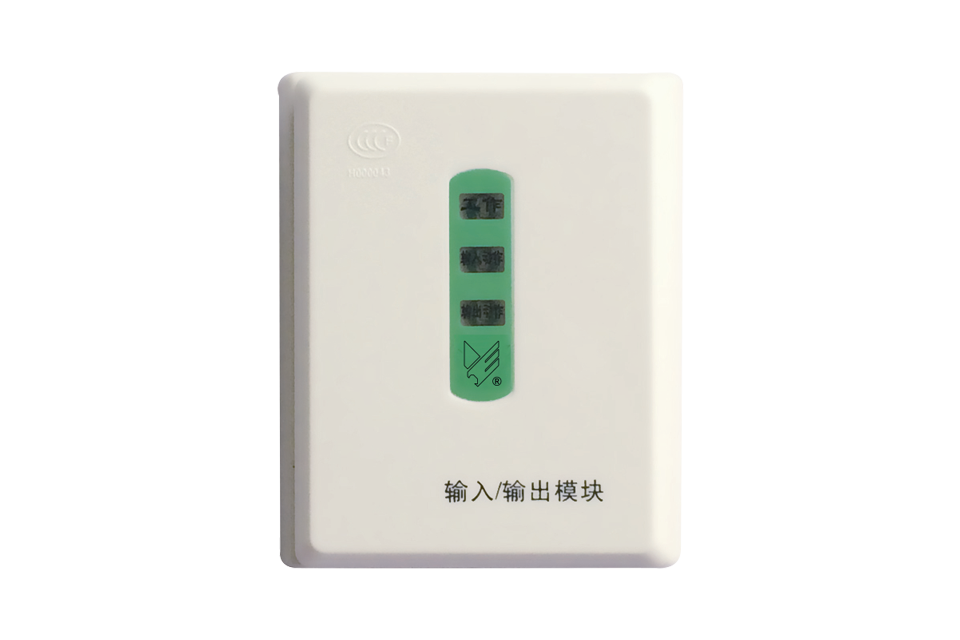

Product model	JKM-YKS4210C
Working voltage	DC18~24V
Working current	≤ 450uA
Coding method	Electronic coding
Wiring method	The two-wire bus is non-polar
Output contact	Passive contact signal capacity: 30VDC/2A,125VAC/1A
Control mode	Continuous or intermittent output
Working environment	Temperature :-10℃ to 55℃ Relative humidity: ≤ 92%(at 40℃)
External dimensions	100mm×82mm×34mm
Material	ABS resin
