Two-bus, non-polar

Electronic coding method, occupying one address point;

Receive passive switch signals;

It has the function of line fault detection and selection, and monitors the open circuit fault of switch signals.

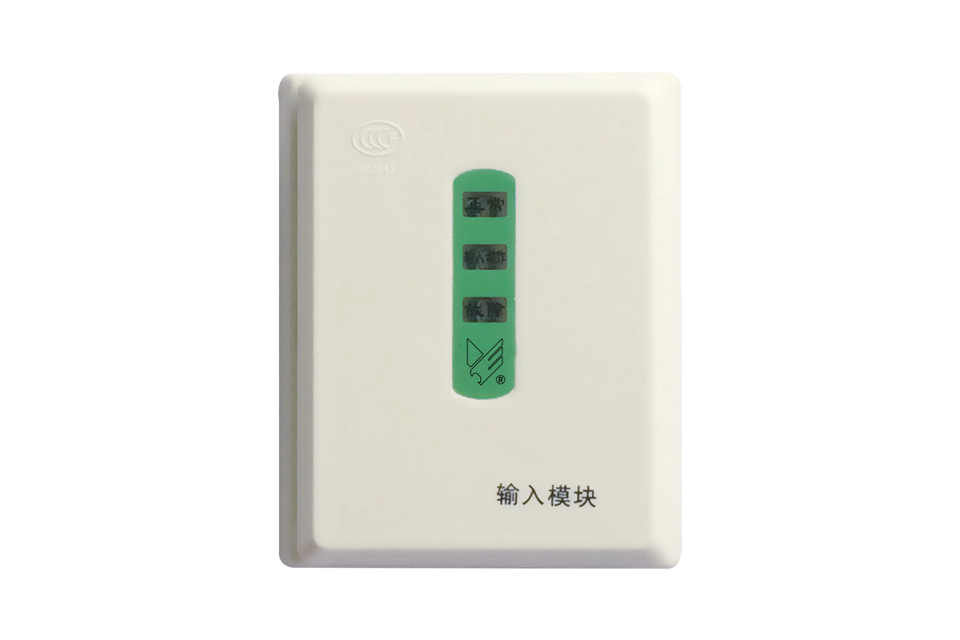

Product model	JSM-YKS4200C
Working voltage	DC18~24V
Static current	≤ 450uA
Coding method	Electronic coding
Wiring method	The two-wire bus is non-polar
Working environment	Temperature :-10℃ to 55℃ Relative humidity: ≤ 92%(at 40℃)
External dimensions	100mm×82mm×34mm
Material	ABS resin
