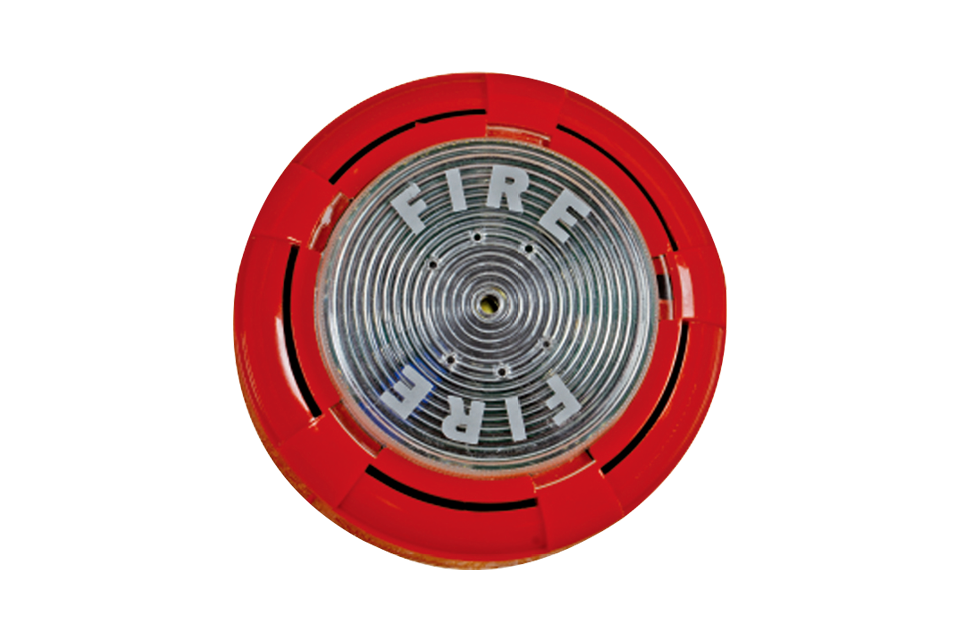

Automatic fire alarm system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Four-wire system, non-polar;

Electronic coding method, occupying one address point;

Easy to install, it can be wall-mounted or ceiling-mounted.

Small working current

Product model	JB-YKS4315
Working voltage	DC24V
Alarm current	≤ 25mA(Effective value)
Coding method	Electronic coding
Wiring method	The power supply is DC24V non-polar, and the bus is also non-polar
Flash frequency	1Hz~1.5Hz
Environmental conditions	0℃ ~55℃ ; ≤ 92%(40℃ )
External dimensions	Φ102mm×H43.5mm
Material	ABS resin
