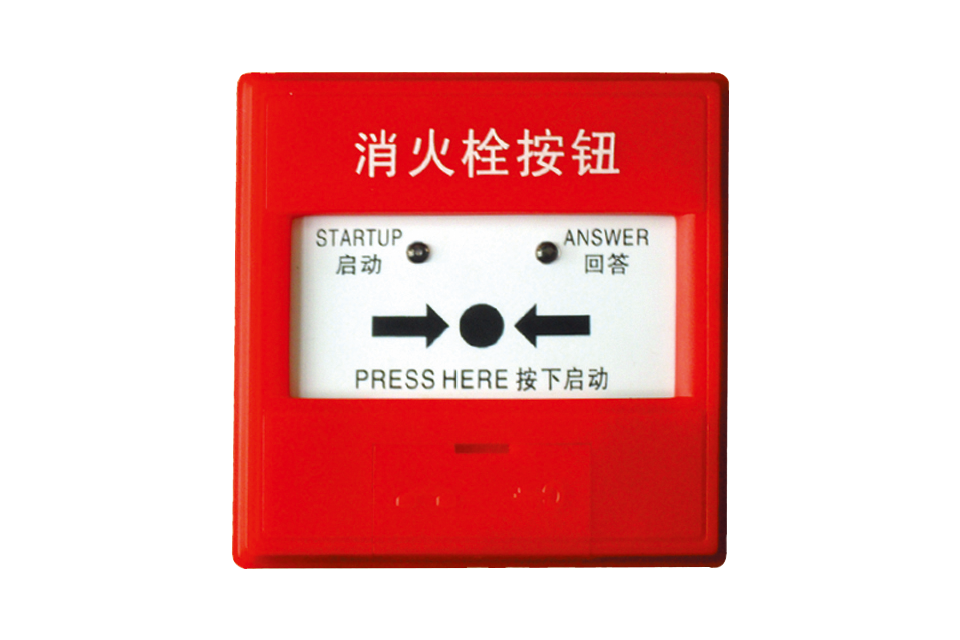

Automatic fire alarm system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Product Features

Two-bus, non-polar

Electronic coding method, occupying one address point;

Reserve the pump start contact point;

The answer indicator light is illuminated by the controller.

It is convenient to reset.

Product Parameters

Product model	XA-YKS4130B
Working voltage	DC24V(DC18V~DC24V)
Static current	≤ 300uA
Alarm current	1.5~3mA
Coding method	Electronic coding
Wiring method	The two-wire bus is non-polar
Output contact capacity	DC30V/0.5A
Working environment	Temperature -10℃ ~+55℃
Relative humidity	≤ 92%(40℃)
External dimensions	94mm×94mm×42mm
Material	ABS resin
