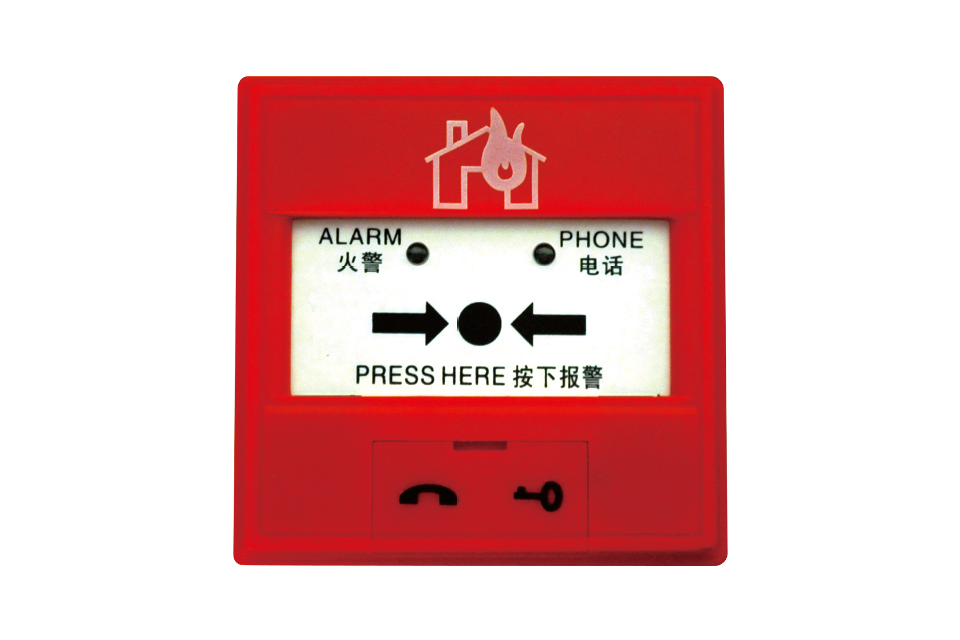

Automatic fire alarm system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Product Features

Two-bus, non-polar

Electronic coding method, occupying one address point;

Easy to reset;

It comes with a built-in phone jack.

Product Parameters

Product model	J-SAP-M(5)C
Working voltage	DC24V(DC18V~DC24V)
Static current	≤ 300uA
Alarm current	1.5~3mA
Coding method	Electronic coding
Wiring method	The two-wire bus is non-polar
Output contact capacity	DC30V/0.5A
Working environment	Temperature -10℃ ~+55℃
Relative humidity	<92%(40℃)
External dimensions	94mm×94mm×42mm
Material	ABS resin
Telephone jack	Φ3.5
