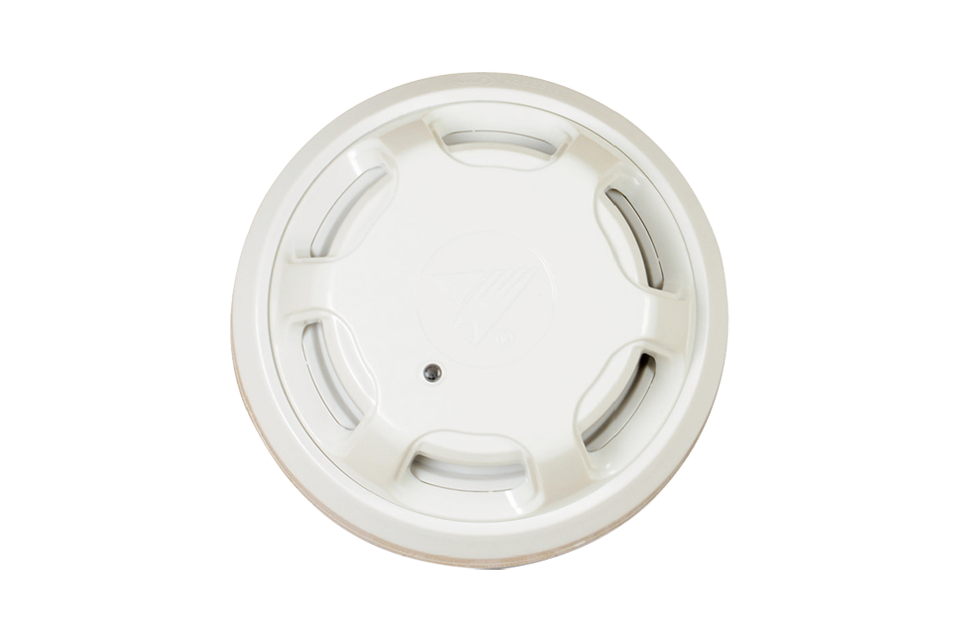

Automatic fire alarm system-Yingkou New Shanying Alarm Equipment Co., Ltd.

Product Features

Two-bus, non-polar

Electronic coding method, occupying one address point;

Microcurrent

There is no installation direction.

Product Parameters

Product model	JY-G-YKS3H
Working voltage	DC24V(DC18V~DC24V)
Static current	≤ 400uA
Alarm current	1.5~3mA
Coding method	Electronic coding
Wiring method	The two-wire bus is non-polar
Relative humidity	≤ 92%(40℃ ±2℃ )
Storage temperature	-20℃ ~70℃
External dimensions	104mm(Diameter)×51mm(High)
Material	ABS resin
